Large Forging for Oil and Gas Pipe Fittings: Strengthening the Backbone of Pipeline Infrastructure
2025-01-16
The oil and gas industry operates under extreme conditions, with pipelines often subjected to high pressures, corrosive environments, and significant mechanical stress. To ensure the reliability and longevity of the infrastructure, critical components such as pipe fittings must be able to withstand these demanding conditions. Large forging for oil and gas pipe fittings is central to achieving this goal. These forgings are crucial for manufacturing fittings such as flanges, tees, elbows, and reducers, which are vital to the functioning of pipeline systems. This article Longteng delves into the manufacturing process of large forgings used in oil and gas pipe fittings.
What is the Large Forging for Oil and Gas Pipe Fittings?
Large forging for oil and gas pipe fittings are essential components used to manufacture various parts such as flanges, elbows, tees, couplings, and valves. These forged products are created through a process that involves heating and applying high pressure to metal, ensuring they possess the strength and durability necessary for high-pressure, high-temperature, and corrosive environments. Materials commonly used for large forgings for oil and gas pipe fittings include high-strength steel, stainless steel, nickel-based alloys, and titanium alloys, which are ideal for the harsh conditions in the oil and gas industry.
Manufacturing Process of Large Forging for Oil and Gas Pipe Fittings
1. Material Selection
Material selection is a crucial first step in the production of large forging for oil and gas pipe fittings. The material must possess certain properties, such as strength, ductility, and resistance to corrosion and fatigue. Carbon steel, stainless steel, and alloy steels are common materials used for these forgings, as they offer the appropriate balance of properties required for pipe fittings in the oil and gas sector. Stainless steel is often chosen for its superior resistance to corrosion, making it ideal for components used in offshore or subsea pipelines, where exposure to saltwater and other corrosive elements is prevalent. Alloy steels, on the other hand, are selected for their high strength and resistance to high temperatures, making them suitable for high-pressure applications.
The selection of materials is carefully made based on the specific needs of the pipeline system, ensuring that the forgings will perform reliably in their intended applications. Materials with high resistance to hydrogen sulfide (H2S) and other corrosive substances are also essential, especially in sour service applications.
2. Forging Process

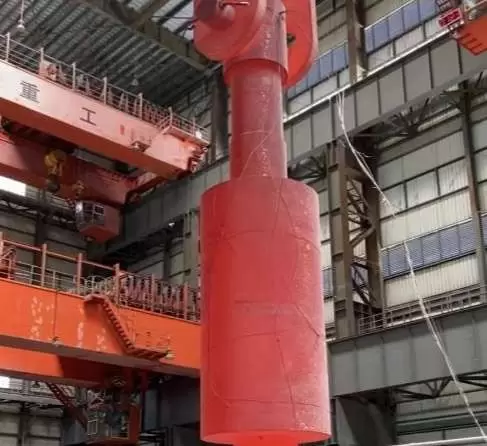

The forging process begins by heating the selected material to a specific temperature to make it malleable. The billet or raw material is then placed into a forging press or hammer, where significant pressure is applied to shape it into the desired form. This process imparts superior mechanical properties to the material, such as increased strength and improved resistance to fatigue, making it ideal for components that will be exposed to heavy loads and high-pressure conditions. In large forging for oil and gas pipe fittings, the primary components—such as elbows, tees, reducers, and flanges—are formed using open-die or closed-die forging techniques.
In open-die forging, the material is compressed between two dies that do not enclose the billet completely, allowing it to expand in multiple directions. This method is ideal for producing large and complex parts. On the other hand, closed-die forging is used to shape smaller and more intricate components, where the billet is placed in a die that completely surrounds it, providing a more defined shape. The forging process ensures that the final product has a grain structure that aligns with the direction of the applied pressure, enhancing the material's strength. This improves the overall performance of the forged pipe fittings by ensuring they can resist mechanical stress and the forces that arise during operation.
3. Heat Treatment
Once the forging process is completed, the next critical step is heat treatment. Heat treatment is used to improve the material's hardness, strength, and toughness, making it more suitable for the demanding conditions in the oil and gas industry. Depending on the material and the application, the heat treatment process may include steps such as annealing, quenching, tempering, or normalizing. Annealing involves heating the forged components to a high temperature and then slowly cooling them to relieve stresses, increase ductility, and enhance the material's toughness. Quenching and tempering are often used to increase the hardness and strength of steel components, especially those subjected to high pressures or temperatures. These processes help ensure that the final forged pipe fittings have the necessary mechanical properties to withstand the operational conditions found in oil and gas pipelines.
The heat treatment process is critical for enhancing the resistance of pipe fittings to cracking, wear, and corrosion, which are particularly important for components that will be exposed to harsh environments such as offshore installations or deep-water pipelines.
4. Machining and Surface Treatment
Once the large forgings have been heat-treated, they undergo precise machining processes to achieve the exact dimensions and specifications required for installation. Machining operations, such as turning, milling, drilling, and grinding, are used to remove excess material and refine the shape of the forged component. Machining also ensures that the fitting will have the correct tolerances for proper assembly and installation in a pipeline system. In addition to machining, surface treatments may be applied to improve the material's resistance to corrosion and wear. These treatments include shot blasting, pickling, polishing, and coating with anti-corrosion materials. For instance, pipe fittings used in corrosive environments may undergo a coating process to protect the metal from the effects of moisture and salt.
The finishing processes are essential in ensuring that the large forgings meet the required surface quality and perform as expected under real-world operating conditions. For critical oil and gas applications, achieving a smooth and defect-free surface is vital to ensure proper sealing and minimize the risk of leaks or failures.
Through the precise manufacturing process of large forging for oil and gas pipe fittings, components that meet the highest industry standards can be produced, ensuring that oil and gas pipelines are both reliable and durable under extreme conditions.
Large forging for oil and gas pipe fittings is vital for ensuring the strength, durability, and performance of pipeline systems. The manufacturing process, including material selection, forging, heat treatment, and machining, ensures that these components can withstand extreme pressures, temperatures, and corrosive environments. As pipeline systems continue to expand, the demand for large forgings will remain critical in maintaining the integrity and safety of these infrastructure systems. By investing in high-quality forged components, the oil and gas industry can continue to meet the challenges of transporting oil and gas safely and efficiently across vast distances.
